The test clamp is responsible for the clamping and conducting functions in aging tests,functional verifications,and temperature cycling.The aging test lasts for a long time.The temperature environment is variable.The fixed performance directly affects the stability of the test data.

The fixed performance of the test clamp in the aging test is first manifested in the stability of the clamping force.If the clamping force is insufficient,the contact points will become loose.Long-term testing may result in temporary breaks.If the contact pressure is too high,it may cause the components to deform.The requirements for the clamping force vary depending on the material of the components.Users usually perform clamping force calibration before the aging test.

The fixation performance of the test clips is also reflected in their temperature resistance.Aging tests often involve temperature rise.Some test clips use plastic components.Softening may occur at high temperatures.The opening size of the clamping jaws changes.The metal body of the clips performs more stably at high temperatures.If the coating material is not temperature-resistant,it may peel off,causing unstable contact.

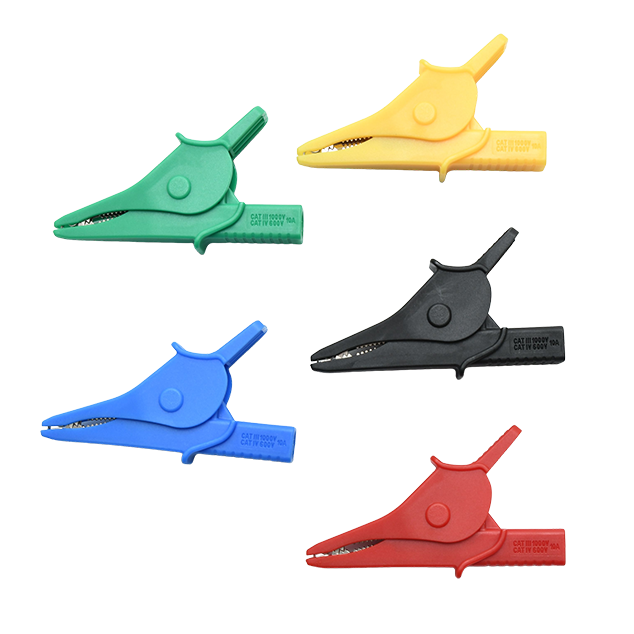

Test clip

The performance of the test clip fixation is also reflected in the conduction stability.The contact points may oxidize over a long period of testing.The contact resistance increases.The data shows drift.Users usually clean the clip points before the aging test.Some clips adopt a gold-plated structure.This can reduce the probability of oxidation.

The fixation performance of the test clamp is also affected by the stress of the cable.If the cable swings during the aging process,it will generate traction.When the clamping end is subjected to external force,the clamping position may shift.If the cable fixation points are set reasonably,the impact can be reduced.

The performance of the test fixture during the aging process is also related to the structure of the gripper.Sharp-shaped grippers are suitable for small solder pads.Flat-mouth grippers are suitable for large contact points.If the structure does not match,it will cause uneven contact surfaces.The fixation performance is unstable.Users will choose the appropriate gripper body according to the shape of the components when designing the fixture.

During the aging test,the test clamp may also experience fatigue wear.If the spring structure is subjected to force for a long time,it may lose its elasticity.The clamping force decreases.The test data fluctuates.Regular replacement of the clamp body can reduce the risk.

The performance of the test clips'fixation is also reflected in their corrosion resistance.The aging test environment may include an increase in humidity.If the metal has insufficient corrosion resistance,the surface will change color,affecting conductivity.The thickness and material of the coating can affect the corrosion resistance level.

When evaluating the aging performance of the test clips,users usually consider factors such as clamping force,temperature resistance,conduction stability,cable stress management,and contact material.An appropriate structure can enhance the reliability of the aging test.
